SONY SNC-RX570N wird von ipCam FC (iPhone/iPad App) unterstützt

ipCam FC iPhone App

Übersicht ipCam FC für iPhone, iPad, iPod Touch

Wichtige Hinweise Vor Nutzung der Kamera mit dem APP muss diese auf JPEG Modus umgestellt werden!

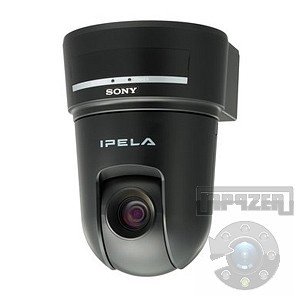

Hersteller Beschreibung SONY SNC-RX570N

Diese Beschreibung bezieht sich nicht auf den Funktionsumfang der hier angebotenen Apps! Es ist nur eine Kopie der Hersteller Beschreibung!

Intelligent Network Pan/Tilt/Zoom Camera. Bringing Security Technology full-circle with 360? endless pan capability, the SNC-RX570 is a powerful, intelligent, high speed PTZ camera. 360 degree endless Pan/Tilt/Zoom (Speed Dome) Auto-focus x 36 optical zoom lens ¼ type Super HAD CCD Wide Dynamic Range with Dynaview™ Technology JPG, MPEG4, H.264 30 fps JPG/MPEG4 at VGA resolution, Dual Streaming
Technische Daten IMAGE Image Size 704 x 480 (NTSC), 704 x 576 (PAL), 640 x 480, 384 x 288, 320 x 240, 160 x 120 (JPEG, MPEG-4, H.264) Maximum frame rate JPEG/MPEG-4: 30 fps (704 x 480) ; H.264: 10 fps (704 x 480) CAMERA Minimum Object Distance 320 mm (wide) 1500 mm (tele) Electronic Shutter 1 to 1/10000 s Gain Auto/Manual (-3 to +28 dB) Exposure Control Auto Full Auto Shutter-Priority Iris-Priority Manual EV Compensation Backlight Compensation Minimum Illumination Color: 1.4 lx (50IRE F1.6 AGC ON) B/W: 0.15 lx (50IRE F1.6 AGC ON) White Balance Mode Auto Indoor Outdoor One-push WB ATW Manual Zoom Ratio 36x Optical Zoom (432x with Digital Zoom) F-Number F1.6 (wide) F4.5 (tele) Horizontal Viewing Angle 1.7 to 57.8 degrees Lens Type Auto-Focus Zoom Lens Focal Length f=3.4 to 122.4 mm Pan Angle 360 Degrees Pan Speed 300 degrees Tilt Angle -90°to 0° Tilt Speed 300 degrees Day/Night function Yes Horizontal Resolution 530TVL Compression Format JPG/MPEG4 Dual, H.264 Camera Type P/T/Z Camera Wide-D Yes ANALOG VIDEO OUTPUT S/N Ratio more than 50 dB Signal System NTSC (Composite) AUDIO Audio Compression G.711/G.726 (40,32,24,16 Kb/s) INTERFACE Analog Video Output BNC x1 1.0 Vp-p 75 ? I/O Port Sensor in x 2 Alarm out x 2 External Microphone Input Mini-jack (monaural 2.2 K? 2.5 V plug-in power) Audio Line Outpu Mini-jack (monaural) Max Output Level: 1 Vrms Network 10Base-T/100Base-TX GENERAL Weight 4 lb 13 oz (2.2 kg) Power Requirements AC 24 V / DC 12 V Dimensions (W x H x D) 6 3/8 x 6 3/8 x 9 1/8 inches (160 x 160 x230 mm) Power Consumption 27 W max. Operating Temperature 32 to 122 °F (0 to 50 °C) Storage Temperature -4 to 140 °F (-20 to 60 °C) Finish White Supplied Accessories Ceiling-mount Bracket (A) x 1, Ceiling-mount Bracket (B) x 1, Wire rope x 1, Screws x 6, CD-ROM x 1, Installation manual x 1 NETWORK Protocols IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, FTP (client/server), SMTP, DHCP, DNS, NTP, RTP/RTCP, RTSP, SNMP (MIB-2) Number of Clients 20 Authentication IEEE802.1X
Weitere unterstützte SONY IP Kameras SNC-CH110, SNC-CH120, SNC-CH140, SNC-CH160, SNC-CH180, SNC-CH210, SNC-CH220, SNC-CH240, SNC-CH260, SNC-CH280, SNC-CX600, SNC-CX600W, SNC-CX600W, SNC-DF40N, SNC-DF40P, SNC-DF70N, SNC-DF70P, SNC-DH110, SNC-DH110T, SNC-DH120, SNC-DH120T, SNC-DH140, SNC-DH140T, SNC-DH160, SNC-DH180, SNC-DH210, SNC-DH210T, SNC-DH220, SNC-DH220T, SNC-DH240, SNC-DH240T, SNC-DH260, SNC-DH280, SNC-EB520, SNC-EB600, SNC-EB600B, SNC-EB630, SNC-EB630B, SNC-EM520, SNC-EM521, SNC-EP521, SNC-EP550, SNC-EP580, SNC-ER521, SNC-ER550, SNC-ER580, SNC-ER585, SNC-P1, SNC-P5, SNC-RH124, SNC-RH164, SNC-RS44N, SNC-RS44P, SNC-RS46N, SNC-RS46P, SNC-RS84N, SNC-RS84P, SNC-RS86N, SNC-RS86P, SNC-RX530N, SNC-RX530P, SNC-RX550N, SNC-RX550P, SNC-RX570N, SNC-RX570P, SNC-RZ25N, SNC-RZ25P, SNC-RZ30N, SNC-RZ30P, SNC-RZ50N, SNC-RZ50P, SNC-VB600, SNC-VB600B, SNC-VB630, SNC-VB632D, SNC-Z20N, SNC-Z20P, SNC-ZB550, SNC-ZM550, SNC-ZM551, SNC-ZP550, SNC-ZR550,
