Manufacturers description Panasonic BL-C101

This description has no relation to the features of the app! Its only a copy of the manufacturers description!

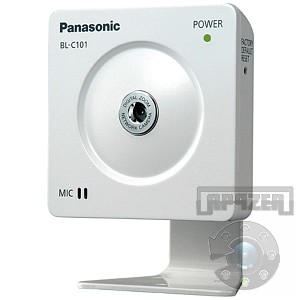

The BL-C101A is a wired IP network camera that includes a 10x digital zoom, simultaneous MPEG-4/JPEG and 3 LUX Color Night View Mode. Records up to 30 Frames per Second. Features Full Screen Monitoring Remote Monitoring from Cell phone 4-up, 9-up and 16-up Multi-Camera Pages Built in Web Server/IP Address (IPv4/v6) Built-in Microphone Thermal Sensor Image Transfer by Motion Detection Sensor Alert, Time Plug & Play Installation Free Web Address Multi-Language Interface
Technical specifications Image Compression JPEG (Motion JPEG for moving image dsiplay), MPEG-4 Quality Video Resolution 640 x 480, 320 x 240 (default), 192 x 144 Image Quality JPEG (favor clarity, standard, favor motion), MPEG4 Authentication User ID/Password / SSL Supported Network Protocols IPv4 / IPv6 Dual Stack IPv4: TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS, ARP, ICMP, POP3, NTP, IPsec, UPnP™ IPv6: TCP, UDP, IP, HTTP, FTP, SMTP, DNS, ICMPv6, POP3, NDP, NTP, IPsec Simultaneous Viewers Max. 30 simultaneous access (Max. 10 access in HTTPS communication) Buffered Images Approx. 250 images (320 x 240) - standard image quality - with time display Image Buffer Alarm, time or motion detection-Image Buffer Triggers Image Transfer via E-Mail (SMTP) or FTP SMTP, FTP, HTTP Zoom 10x digital zoom (by area) Image Sensor 1/4 inch CMOS sensor, approx. 320,000 pixels Viewing Angle Horizontal: 58°Vertical: 45° Required Light Intensity 5 to 10,000 lux (in Color Night View Mode: 3 to 10,000 lux) Lens Focus Point Fixed (focal range: 0.3m to ?) CODEC ADPCM (32kbps) Input Built-in Microphone Network Connection Ethernet (10Base-T/100Base-TX) External I/O Connector 1 input Operating Temperature +5°C to +40°C (+41°F to +104°F) Operating Humidity 20-80% RHG, non-condensing Power Source AC adaptor:input 100 - 240 V AC,50/60 Hz Output 9V DC, 750 mA Weight (only the unit) .22 1-Way Audio One Way Communication CODEC/Audio Compression ADPCM 32 kbps Bandwidth 300 Hz – 3,400 Hz Dimensions (H x W x D) 3 5/32" x 5 29/32" x 8 5/32" Weight 1.4 lbs
More supported Panasonic IP Cameras BL-C1, BL-C10, BL-C101, BL-C111, BL-C121, BL-C131, BL-C140, BL-C160, BL-C20, BL-C30,
