TRENDnet TV-IP422 wird von ipCam FC (iPhone/iPad App) unterstützt

ipCam FC iPhone App

Übersicht ipCam FC für iPhone, iPad, iPod Touch

Hersteller Beschreibung TRENDnet TV-IP422

Diese Beschreibung bezieht sich nicht auf den Funktionsumfang der hier angebotenen Apps! Es ist nur eine Kopie der Hersteller Beschreibung!

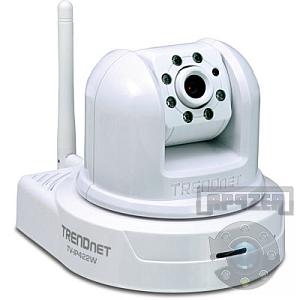

The SecurView Wireless N Day/Night Pan/Tilt/Zoom Internet Camera, model TV-IP422WN, provides day and night security over a large area. Pan the camera side-to-side a remarkable 330 and tilt up-and-down 105. Wireless n technology provides unsurpassed wireless coverage and improved streaming video quality. Add this camera to your wireless network at the touch of a button with Wi-Fi Protected Setup (WPS). Infrared bulbs provide night vision for distances of up to five meters (16 feet) in complete darkness. A built-in microphone and optional speakers accommodate 2-way audio communications. Manage up to 32 SecurView cameras with the included complimentary camera management software. Advanced features include motion detection recording, email alerts, scheduled recording sessions, MPEG-4 / MJPEG image compression, 3GPP support, an optional USB port, preset Auto-Patrol, Input/Output ports, and digital zoom. A wall/ceiling mounting kit is included and the off-white camera housing blends into most environments. Wi-Fi compliant with IEEE 802.11b/g/n networks 3 x digital zoom 1 x 10/100Mbps Fast Ethernet port 1 x Wi-Fi Protected Setup button 1 x USB port allows you to store still images directly to a USB flash drive* Pan 330 side-to-side and tilt 105 up-and-down from any Internet connection High quality MPEG-4 and MJPEG video recording with up to 30 frames per second Resolution up to 640 x 480 pixels resolution Power and activity LED indicators (can be disabled) Infrared night vision for up to 5 meters (16 feet) Dynamic DNS support Image control: brightness, contrast, saturation, and mirror (horizontally/vertical) Supports TCP/IP networking, SMTP Email, HTTP, Samba, and other Internet protocols Record streaming video to your computer and Network Storage Server Motion detection triggered email alerts and image upload via FTP Stream Internet camera video to a 3GPP compatible wireless device Supports 64/128-bit WEP and WPA/WPA2-PSK wireless encryption Hear and talk to people in your cameras viewing area through your computer Two adjustable motion detection windows with just-in-time snapshot Quick Universal Plug and Play installation
Technische Daten General Sensor: 1/4" color CMOS sensor Resolution: 640 x 480 pixels Board Lens Focal Length: 4.0mm Aperture (F/No): F1.8 IR LED with light sensor control Minimum illumination: 0 Lux Diagonal viewing angle: 64 degree Pan & Tilt Pan: +165~-165 degree Tilt: +90 ~ -15 degree Preset positions: 8 positions Image & Video Compression: MPEG-4/MJPEG dual streaming Exposure/white balance/Gain Control : automatic Resolution: up to 30ps for VGA (640x480), 30fps for QVGA (320x240), 30fps for QQVGA (160x120) Audio Audio in: internal omni-directional microphone Sensitivity: -48dB +/- 3dB Frequency response: 50 ~ 16000Hz Audio out: external output to active speaker (mono) Echo Cancellation: hardware voice processor Audio codec: PCM/AMR Hardware Network IEEE 802.3u 10/100Mbps Fast Ethernet, Auto-MDIX LED Power, Link IR wavelength 940nm Reset Button Restore to factory default WPS Button Push button for Wi-Fi Protected Setup Power Consumption 10 watts max. Power 12 V DC, 1.5 A external power adapter (3.5 mm plug) Dimension 115 x 110 x 105 mm (4.53 x 4.33 x 4.13 in) Weight 360 g (12.6 oz) Temperature Operating: 0C ~ 45C (32F ~ 113F) Storage: -15C ~ 60C (5F ~ 140F) Humidity Max. 90% (non-condensing) Certifications CE, FCC Requirement Management Interface Internet Explorer 6.0 or above To Run SecurView Pro Windows 7 (32/64 bit), Vista (32/64 bit), XP (32/64 bit) SecurView Pro Channel: supports up to 32 cameras Record/Playback/Motion Detection Network Protocols TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, Samba, PPPoE, UPnP, Bonjour, RTP, RTSP, RTCP Wireless Standard Based on IEEE 802.11n technology IEEE 802.11g/b compliant Frequency 2.4 ~ 2.4835GHz Antenna 1 x 2dBi dipole antenna (Reverse-SMA connector) Data Rate (auto fallback) 802.11n: up to 150Mbps 802.11g: up to 54Mbps 802.11b: up to 11Mbps Security 64/128-bit WEP, WPA/WPA2-PSK Output Power 802.11n: 15 + 1 dBm 802.11b: 15 + 1 dBm 802.11g: 18 + 1 dBm Receiving Sensitivity 802.11n HT20: -67dBm 802.11n HT40: -64dBm 802.11g: -70dBm 802.11b: -87dBm Channel 1~11 (FCC), 1~13 (ETSI) Management Remote Remote management supported Backup / Restore Save/retrieve configuration files Settings Recording Recording type: continuous, schedule or motion detection with software Multi-Profile 3 profiles simultaneously Port Settings HTTP port: 80 (default) Digital Zoom 3x Dynamic DNS Yes Time Synchronize with NTP server or set time/date manually SMTP SMTP mail supported up to 2 accounts with software System Log 100 entries (max.)
Weitere unterstützte TRENDnet IP Kameras TV-IP121, TV-IP212, TV-IP252, TV-IP311PI, TV-IP312, TV-IP314PI, TV-IP315PI, TV-IP316PI, TV-IP317PI, TV-IP318PI, TV-IP319PI, TV-IP320PI, TV-IP321PI, TV-IP322WI, TV-IP340PI, TV-IP341PI, TV-IP342PI, TV-IP344PI, TV-IP345PI, TV-IP410, TV-IP420P, TV-IP422, TV-IP430PI, TV-IP440PI, TV-IP450P, TV-IP450PI, TV-IP651W, TV-IP651WI, TV-IP672P, TV-IP672PI, TV-IP672W, TV-IP672WI,
