AXIS 209MFD wird von ipCam FC (iPhone/iPad App) unterstützt

ipCam FC iPhone App

Übersicht ipCam FC für iPhone, iPad, iPod Touch

Hersteller Beschreibung AXIS 209MFD

Diese Beschreibung bezieht sich nicht auf den Funktionsumfang der hier angebotenen Apps! Es ist nur eine Kopie der Hersteller Beschreibung!

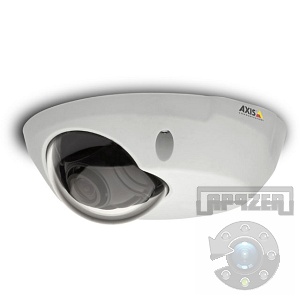

Flat non-invasive design Megapixel resolution Progressive scan Power over Ethernet Easy installation Excellent image detail ? When every detail matters HDTV/Megapixel solutions AXIS 209MFD is a megapixel fixed dome network camera, featuring a 1.3 megapixel sensor that delivers excellent image detail, perfect for the identification of individuals and objects of interest. The megapixel resolution allows important areas like entrances or checkouts to be monitored in greater detail. Discreet, non-invasive video surveillance AXIS 209MFD is a flat, discreet network camera designed specifically for non-invasive video surveillance. It is is ideal for areas such as hotel receptions, shops and corridors. Easy installation AXIS 209MFD is quick and easy to install. Its design allows tilt of the lens and horizontal camera adjustment, offering flexible installation. Equipped with Power over Ethernet (PoE) support, the camera uses the Ethernet cable for both power and video, simplifying installation by eliminating the need for power outlets at the camera locations.
Technische Daten Camera Models AXIS 209FD: VGA AXIS 209MFD: Megapixel Image sensor AXIS 209FD: 1/4” Progressive Scan RGB CMOS VGA AXIS 209MFD: 1/3” Progressive Scan RGB CMOS 1.3 Megapixel Lens AXIS 209FD: 3.0 mm, F2.0, fixed iris, horizontal angle of view: 66° AXIS 209MFD: 3.6 mm, F1.8, fixed iris , horizontal angle of view: 74° Light sensitivity AXIS 209FD: 1.5 - 10000 lux, F2.0 AXIS 209MFD: 3 - 10000 lux, F1.8 Shutter time AXIS 209FD: 1/10000 s to 1/4 s AXIS 209MFD: 1/15000 s to 1/4 s Camera angle adjustment Pan ±10°, tilt 0 - 90°, rotation ±10° Pan/Tilt/Zoom AXIS 209MFD: Digital PTZ, preset positions, guard tour Video Video compression MPEG-4 Part 2 (ISO/IEC 14496-2) Motion JPEG Resolutions AXIS 209FD: 160x120 - 640x480 AXIS 209MFD: 160x90 - 1280x1024 Frame rate MPEG-4 AXIS 209FD: Up to 30 fps in max resolution AXIS 209MFD: Up to 8 fps in max resolution, higher frame rate in lower resolutions Frame rate Motion JPEG AXIS 209FD: Up to 30 fps in max resolution AXIS 209MFD: Up to 12 fps in max resolution, higher frame rate in lower resolutions Video streaming Simultaneous MPEG-4 and Motion JPEG Controllable frame rate and bandwidth VBR/CBR MPEG-4 Image settings Compression, color, brightness, sharpness, white balance, exposure control, mirroring, exposure zones, fine tuning of behavior at low light Text and image overlay Privacy mask Network Security Password protection, IP address filtering, HTTPS encryption, Digest Authentication, User access log Supported protocols IPv4/v6, HTTP, HTTPS, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS System integration Application Programming Interface Open API for software integration, including VAPIX® from Axis Communications available at www.axis.com Intelligent video Video motion detection Alarm triggers Intelligent video Alarm events File upload via FTP, HTTP and email Notification via email, HTTP and TCP Video buffer AXIS 209FD: 9 MB pre- and post alarm AXIS 209MFD: 20 MB pre- and post alarm General Casing Tamper-resistant casing Processors and memory ARTPEC-A AXIS 209FD: 32 MB RAM, 8 MB Flash AXIS 209MFD: 64 MB RAM, 8 MB Flash Power Power over Ethernet IEEE 802.3af Class 1 Connectors Female RJ-45 Ethernet 10BaseT/100BaseTX PoE Operating conditions 0 - 50 °C (32 - 122 °F) Humidity 20 - 80% RH (non-condensing) Storage conditions -30 - 70 °C (-22 - 158 °F) Approvals EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class B, VCCI Class B, ICES-003 Class B, C-tick AS/NZS CISPR 22, MIC Class B, EN 60950 Weight 180 g (0.40 lb.) Included accessories AXIS PoE Midspan 1-port, key for tamper-proof screws, Installation Guide, CD with installation tool, recording software and User’s Manual, Windows decoder 1-user license
Weitere unterstützte AXIS IP Kameras 206, 206W, 207, 207MW, 207W, 209FD, 209FD-R, 209FD-R M12, 209MFD, 209MFD-R, 209MFD-R M12, 210, 211, 213 PTZ, 2130 PTZ, 215 PTZ, 215 PTZ-E, 233D, M1004-W, M1011, M1011-W, M1013, M1014, M1031-W, M1033-W, M1034-W, M1054, M1103, M1104, M1113, M1113-E, M1114, M1114-E, M1143-L, M1144-L, M3004-V, M3005-V, M3006-V, M3007-P, M3007-PV, M3011, M3014, M5013, M5013-V, M5014, M5014-V, P3301, P3301-V, P3304, P3304-V, P3343, P3344, P3346, P3346-V, P3346-VE, P3353, P3354, P3363-V, P3363-VE, P3364-LV, P3364-LVE, P3364-V, P3364-VE, P3367-V, P3367-VE, P3384-V, P3384-VE,
